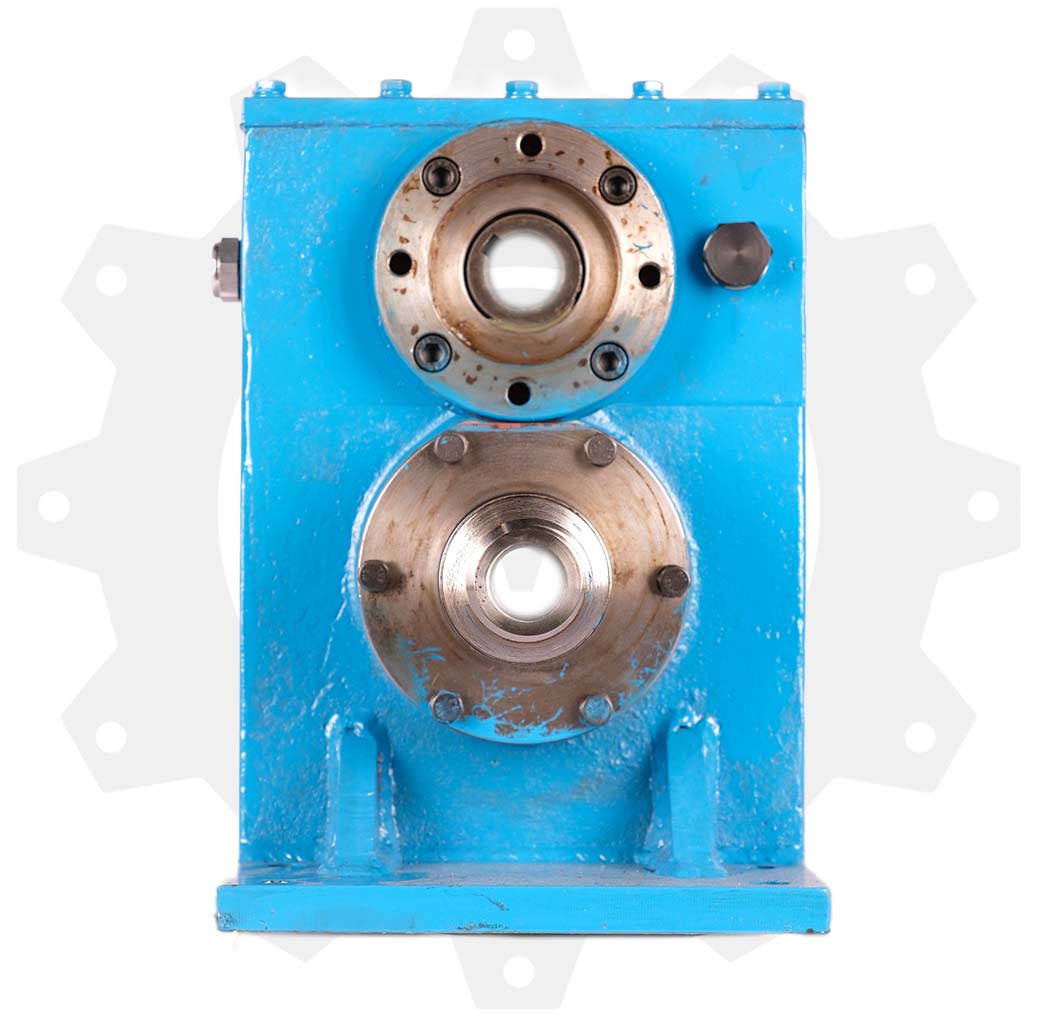

Tractor 3 Bore 4 Pump Drive PTO-104

Our SMS 3 Bore 130 Bore Gearbox is a well renowned gearbox all over drilling industry in India, with Impeccable efficiency, With breaking a record of >20000 hours of working. With easy to service. SMS PTO can drive upto 4 hydraulic pump units ranging from 6 Gpm to 65 Gpm Vane pumps to gear pumps. Tractor power is transferred smoothly through class 6 gears from tractor engine directly to Hydraulic pumps. Connected using a Yoke joint.
Application

Tractor Pump Drive Gearbox
Gearbox Connection

Universal joint or Yoke
Max Hp

220 Hp
Pump Driving Method

Direct Tractor Engine Drive
Hydraulic Pump Mounting

Flange and Pinion Hub (Easy Maintenance)
Ratio

1:1, 1:1.5 (Customisable)
Max Pressure

2000 PSI
Pump Capacity

6 Gpm to 65 Gpm
Gearbox Mounting

Tractor Deck

Site Images
