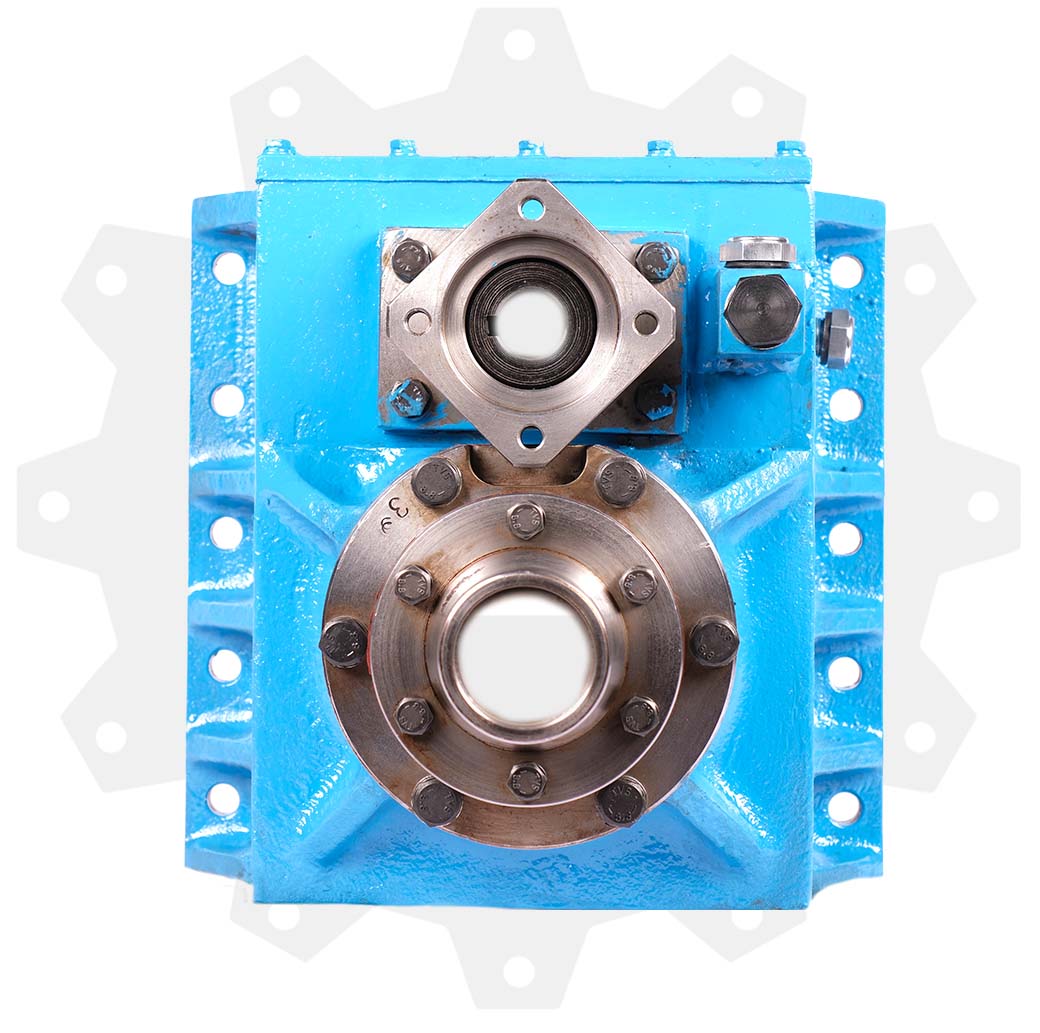

Our SMS 3 Bore Gearbox is a well renowned gearbox allover drilling industry in India, with Impeccable efficiency, With breaking a record of >20000 hours of working. With easy to service. SMS PTO can drive upto 4 hydraulic pump units ranging from 6 Gpm to 50 Gpm Vane pumps and Gear pumps.
With Pneumatic Transmission system, It is easy to transfer power smoothly from truck engine to truck Differential and to Hydraulic pump with a switch inside or outside truck.
| Application |
Truck Pump Drive Gearbox |
|---|---|
| Gearbox Connection |
Universal joint or Yoke |
| Max Hp |
Direct 250 Hp Engine |
| Pump Driving Method |
Pneumatic Transmission/ Manual Transmission |
| Hydraulic Pump Mounting |
Any standards, from 6 to 50 Gpm Capacity |
| Ratio |
1:1, 1:1.5 (Customisable) |
|---|---|
| Max Pressure |
2000 PSI |
| Pump Capacity |
6 Gpm to 50 Gpm |
| Gearbox Mounting |
Truck under Chasis or Top of Deck |
| Connection |
Truck or Tractor Center Joint (Customisable based on Truck) |
| Attachments |
Single acting cylinder, Double Acting Cylinder or Manual Transmission |
