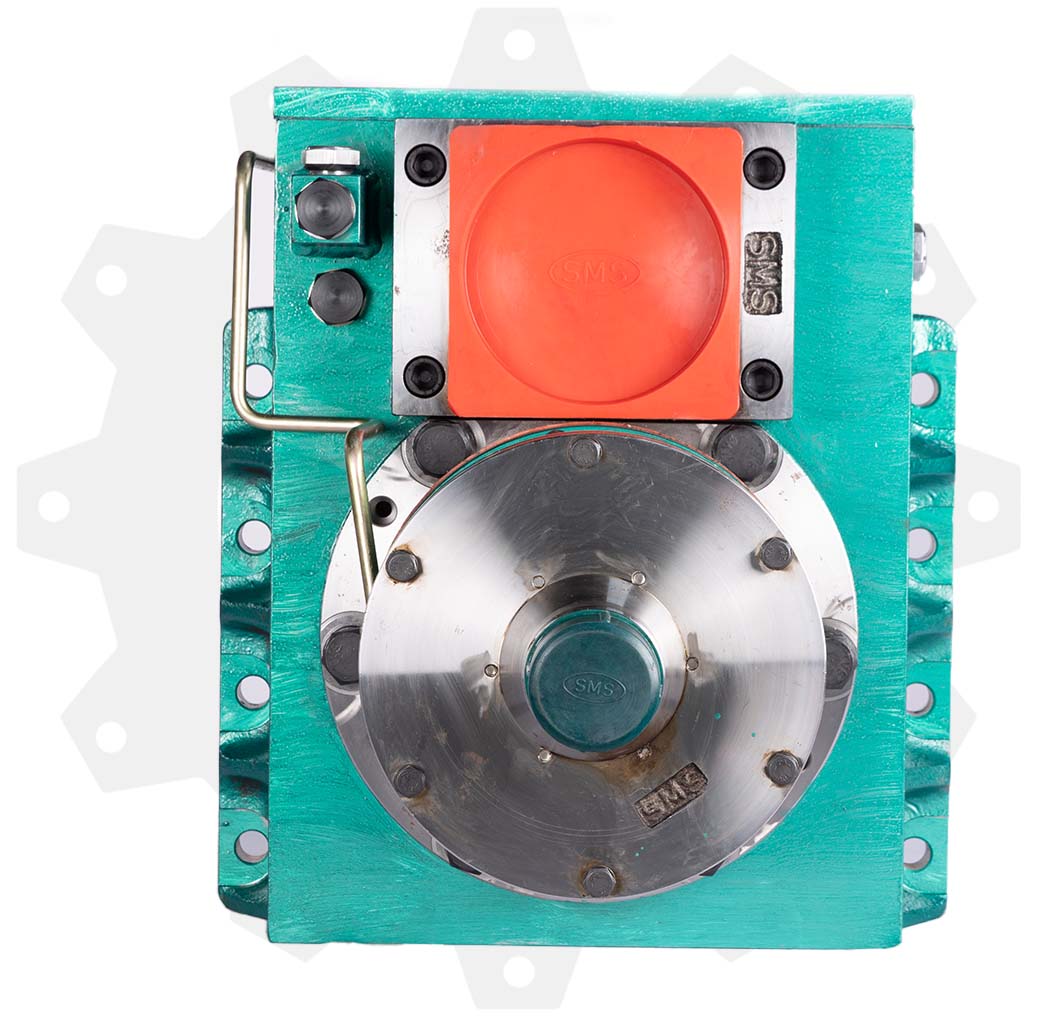

SMS 3 Bore 130 4 Pump Drive Unit PTO-102

Our SMS 3 Bore 130 Bore Gearbox is a well renowned gearbox all over drilling industry in India, with Impeccable efficiency, With breaking a record of >20000 hours of working. With easy to service. SMS PTO can drive upto 4 hydraulic pump units ranging from 6 Gpm to 65 Gpm Vane pumps to gear pumps of mounting standards. With Pneumatic Transmission system, It is easy to transfer power smoothly from truck engine to truck Differential and to Hydraulic pump with a switch inside or outside truck.
Application

Truck Pump Drive Gearbox
Gearbox Connection

Universal joint or Yoke
Max Hp

Direct 250 Hp Engine
Pump Driving Method

Pneumatic Transmission/ Manual Transmission
Hydraulic Pump Mounting

Flange and Pinion Hub (Easy Maintenance)
Ratio

1:1, 1:1.5 (Customisable)
Max Pressure

2000 PSI
Pump Capacity

6 Gpm to 50 Gpm
Gearbox Mounting

Truck under Chasis or Top of Deck
Attachments

Single acting cylinder, Double Acting Cylinder or Manual Transmission
Gearbox Weight

150 Kg's

Site Images
