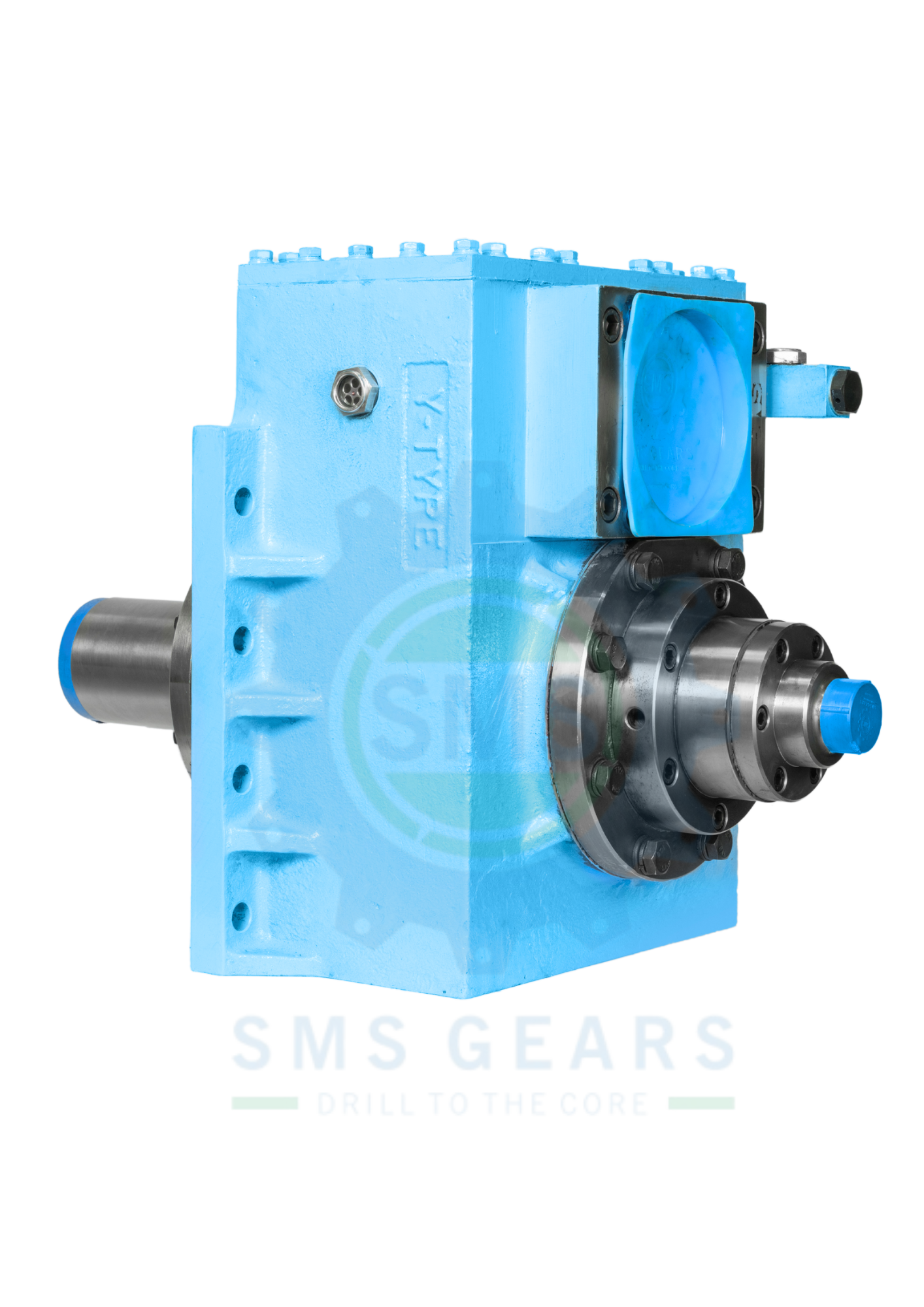

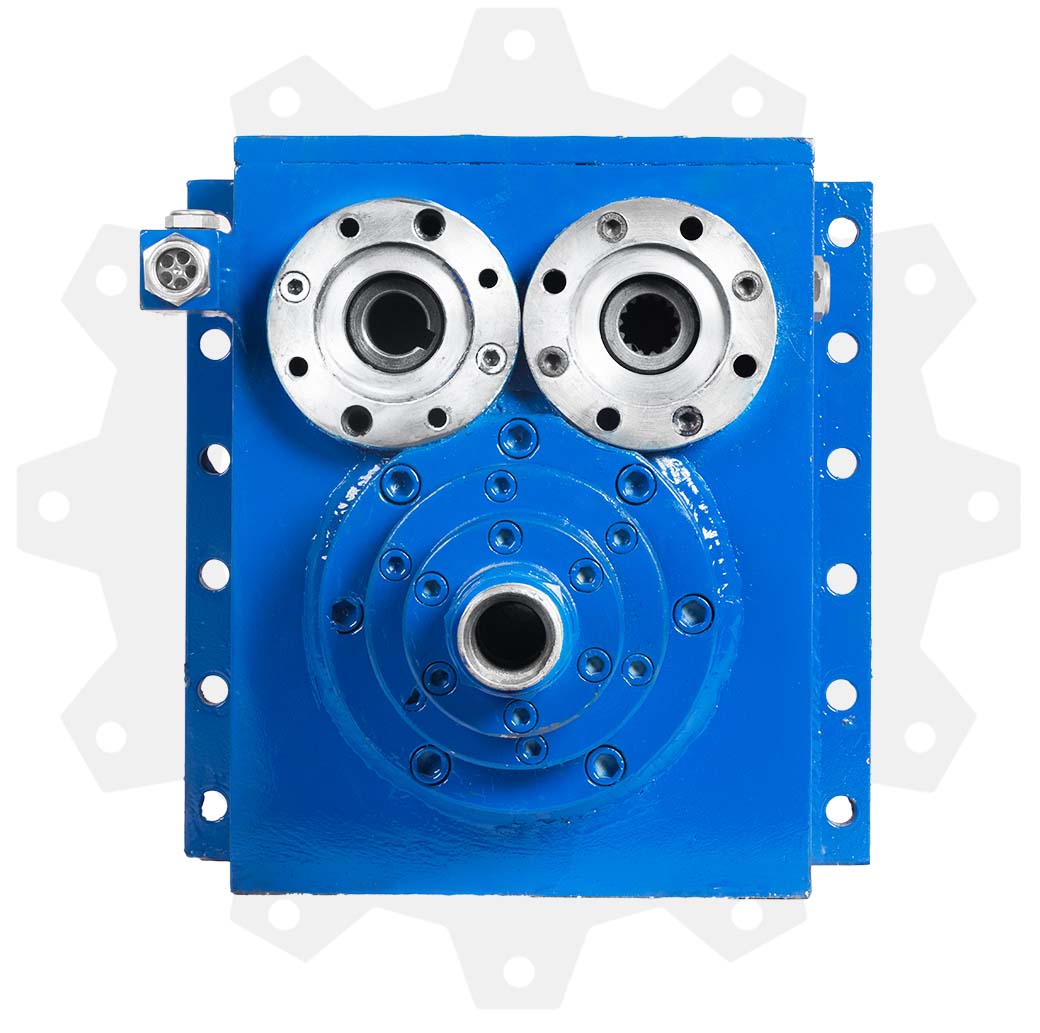

SMS 2 Bore Dynamo & Pump Drive Gearbox

Our SMS 2 Bore Dynamo & Pump Drive Gearbox is a well renowned gearbox all over drilling industry in India, with Impeccable efficiency, With breaking a record of >20000 hours of working. With easy to service. SMS PTO can drive upto 1 hydraulic pump units ranging from 6 Gpm to 65 Gpm Vane pumps to gear pumps of any mounting standards and a optional pulley or coupling for driving a generator. With Pneumatic Transmission system, It is easy to transfer power smoothly from truck engine to truck Differential and to Hydraulic pump with a switch inside or outside truck.
Application

Truck Pump/ Generator Drive Gearbox
Gearbox Connection

Universal joint or Yoke
Max Hp

Direct 250 Hp Engine
Pump/ Coupler Driving Method

Pneumatic Transmission/ Manual Transmission
Hydraulic Pump Mounting

Flange and Pinion Hub (Easy Maintenance)
Ratio

1:1, 1:1.5 (Customisable)
Max Pressure

2000 PSI
Pump Capacity

6 Gpm to 65 Gpm
Gearbox Mounting

Truck under Chasis or Top of Deck
Attachments

Single acting cylinder, Double Acting Cylinder or Manual Transmission, Coupling, Pulley
Gearbox Weight

120 Kg's

Site Images
